Visual Novel Engine for HTML5 Canvas

Choose your minigame wisely

Visual novel players are not arcade gamers or MMORPG players (though they probably play those as well). With visual novels, you want a laid back, select-and-click type of play. One that doesn't put you at the edge of your seat while banging on your keyboard or touch screen. Or one that you could leave for a moment to attend to something (maybe have a cup of coffee) and not find your character dead when you return.

For this type of play, a turn-based game seems ideal. You can have a turn-based RPG or even a player-vs-computer card game.

Let's choose the classic tic-tac-toe instead, vn-Canvas version.

To start with, let's establish the rules. To make everything simple for the purpose of this tutorial,


- Player always start first.
- Player uses "X", computer uses "O".
- Player and computer alternate turns.
- First to make three in a row wins.
- Computer has only one level: dumb.

Let's also make the graphics. We'll need sprites for the grid, and the "X" and "O" marks. Optionally, let's make a highlighted "X" and "O" graphics to display when the player or computer wins.

Add user interaction

Let's layout the grid and sprites on our stage. To make the grid interactive, we'll add nine transparent buttons on the grid that the user can click. NOTE: see how the minigame cform construct looks very much like that of the map cform.


t3 = [
    label, "t3",    // for tic-tac-toe
    overlay, {src:"white"},

    label, "loop",
    cform, ["tictactoe", true,
        picture, {name:"grid", x:190, y:75, frames:["res/grid.png"]},
        button, {name:"g0", x:193, y:73, w:100, h:100, base:"transparent", link:[macro, {clicked:0}], showText:false},
        button, {name:"g1", x:309, y:73, w:100, h:100, base:"transparent", link:[macro, {clicked:1}], showText:false},
        button, {name:"g2", x:425, y:73, w:100, h:100, base:"transparent", link:[macro, {clicked:2}], showText:false},
        button, {name:"g3", x:193, y:189, w:100, h:100, base:"transparent", link:[macro, {clicked:3}], showText:false},
        button, {name:"g4", x:309, y:189, w:100, h:100, base:"transparent", link:[macro, {clicked:4}], showText:false},
        button, {name:"g5", x:425, y:189, w:100, h:100, base:"transparent", link:[macro, {clicked:5}], showText:false},
        button, {name:"g6", x:193, y:307, w:100, h:100, base:"transparent", link:[macro, {clicked:6}], showText:false},
        button, {name:"g7", x:309, y:307, w:100, h:100, base:"transparent", link:[macro, {clicked:7}], showText:false},
        button, {name:"g8", x:425, y:307, w:100, h:100, base:"transparent", link:[macro, {clicked:8}], showText:false},
    ],

    jump, "loop",

    cform, "close",
];

The grid was defined simply. The topmost elements are named, from left to right, g0 to g2. The middle row consists of elements g3 to g5. The bottom row consists of elements g6 to g8. These then are arranged like the 3x3 matrix of a regular tic-tac-toe.

When a grid element (button) is clicked, the macro "clicked" is called with parameter identifying which button was clicked. The macro then calls other functions that effectively controls the flow of the game.


function clicked(key) {
    game_turn(1, key);          // 1 is human player
    check_win(1);               // check if human wins
    var newkey = computer_turn();
    if (newkey != -1)
        game_turn(2, newkey);   // 2 is computer player
    check_win(2);               // check if computer wins
}

To further explain it: Let's assign 1 as the human player and 2 as the computer player. On click of a button, we tell "game_turn" that a "key" is clicked by player 1. Then we let "check_win" see if player 1 wins. If not, we let player 2 (computer) take its turn, we tell "game_turn" about "newkey" by player 2. Then we again let "check_win" to determine if player 2 wins. Simple enough?

Before we proceed, we need to define two global variables: the first determines what is on our tic-tac-toe board, the second lists all possible winning combination. (I know, I know, that is a brute force method of doing it, but for this tutorial, let's make it simple and easy to understand.)


// our tic-tac-toe grid is defined as a 9-element array
var t3_grid = [0,0,0,0,0,0,0,0,0];
    // 0: empty
    // 1: human, filled with X
    // 2: computer, filled with 0
    // other: dummy value
var win_combinations = [
    [0,1,2],    // top row
    [3,4,5],    // middle row
    [6,7,8],    // bottom row
    [0,3,6],    // left column
    [1,4,7],    // middle column
    [2,5,8],    // right column
    [0,4,8],    // back diagonal
    [2,4,6],    // forward diagonal
];

Now let's see what "game_turn" does. It handles both human and computer turns. Basically, it puts an "X" or an "O" on our board, updates our "t3_grid" aray, and clears the button so it won't be clickable again.


function game_turn(player, key) {
    var obj = Helper.getControl("g"+key);
    var sprite = new Image();
    if (player == 1)    // it's human's turn
        sprite.src = "X.png";
    else if (player == 2)  // it's computer's turn
        sprite.src = "O.png";

    // change all sprites for the button
    Stage.layers[4][obj].sprites[0] = sprite;   // base image
    Stage.layers[4][obj].sprites[1] = sprite;   // hover image
    Stage.layers[4][obj].sprites[2] = sprite;   // clicked image
    Helper.addEvent(sprite, 'load', function() {
        Stage.layers[4][obj].redraw = true;
    }, false);
    sprite = null;

    // remove the link, so it will no longer be clickable
    Stage.layers[4][obj].link = null;
    // update our grid array
    t3_grid[key] = player;
}

At this point, when we click on the grid, we should see our X's on the board. But what about the computer? On the next step, we'll add a little intelligence, albeit dumb intelligence, to our opponent.

Add a little intelligence

Our opponent, the computer, takes its turn after ours. This is handled by the macro "computer_turn". As mentioned, it is quite dumb. You could try improving his intelligence by modifying this. ;)


function computer_turn() {
    // make the computer dumb, i.e. no intelligence
    // just find an empty space.
    var empty = false;
    for (var i in t3_grid) {
        if (t3_grid[i] == 0) {
            empty = true;
            break;
        }
    }
    if (!empty) return -1;

    // there's at least one space that's empty, find it!
    var key = Math.round(8*Math.random());
    while (t3_grid[key] != 0)
        key = Math.round(8*Math.random());
    return key;
}

That is all it is doing. Finding an empty space to put its "O"s. As a form of safeguarding, we added some checking to determine if there are still spaces available. Otherwise, our computer will run amuck trying to find a space even when all has been occupied already.

So that leaves us with one last routine to do: How to determine the winner? We put everything in "check_win" macro, plus a little more fancy display to show who won.


function check_win(player) {
    // brute force checking
    for (var i in win_combinations) {
        if ((t3_grid[win_combinations[i][0]] == player) &&
            (t3_grid[win_combinations[i][1]] == player) &&
            (t3_grid[win_combinations[i][2]] == player)) {

            // player wins
            // display winning row
            var obj0 = Helper.getControl("g"+win_combinations[i][0]);
            var obj1 = Helper.getControl("g"+win_combinations[i][1]);
            var obj2 = Helper.getControl("g"+win_combinations[i][2]);
            var sprite = new Image();
            Stage.layers[4][obj0].sprites[0] = sprite;   // base image
            Stage.layers[4][obj0].sprites[1] = sprite;   // hover image
            Stage.layers[4][obj0].sprites[2] = sprite;   // clicked image
            Stage.layers[4][obj1].sprites[0] = sprite;   // base image
            Stage.layers[4][obj1].sprites[1] = sprite;   // hover image
            Stage.layers[4][obj1].sprites[2] = sprite;   // clicked image
            Stage.layers[4][obj2].sprites[0] = sprite;   // base image
            Stage.layers[4][obj2].sprites[1] = sprite;   // hover image
            Stage.layers[4][obj2].sprites[2] = sprite;   // clicked image
            if (player == 1)    // it's human's turn
                sprite.src = "res/X_win.png";
            else                // it's computer's turn
                sprite.src = "res/O_win.png";
            Helper.addEvent(sprite, 'load', function() {
                Stage.layers[4][obj0].redraw = true;
                Stage.layers[4][obj1].redraw = true;
                Stage.layers[4][obj2].redraw = true;
            }, false);
            sprite = null;

            // DO CLEANUP
            // remove all links from layers, so none will be clickable
            // fill t3_grid with dummy value so it can no longer be filled
            for (var i in t3_grid) {
                if (t3_grid[i] == 0) {
                    Stage.layers[4][Helper.getControl("g"+i)].link = null;
                    t3_grid[i] = 3;
                }
            }
            break;
        }
    }
}

Basically, it goes thru all the winning combinations to see if the player who made the last move was able to get one of those combinations. If nobody has, then game play continues. If one of the player did, then we change the winning combination's sprites to display it . Then we do a final cleanup, so that we'll know that indeed the game is over.

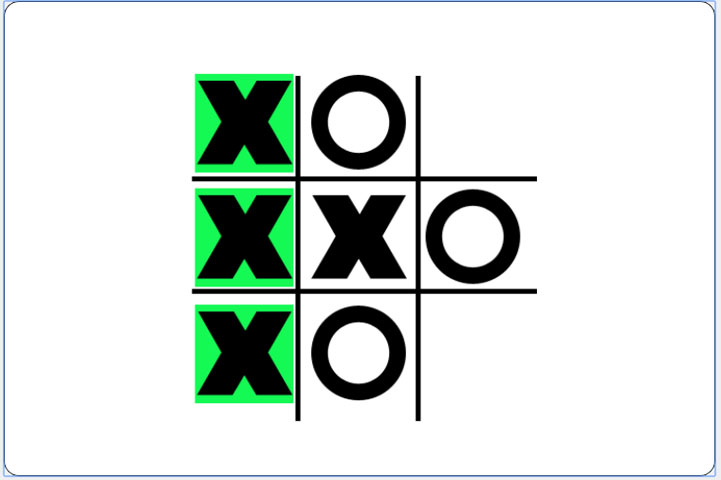

A screenshot of the working tic-tac-toe minigame is shown below. Hope you were able to get some pointers on how to incorporate a minigame in your visual novel. :)

Here's a link to the finished minigame: TIC-TAC-TOE

Use your imagination

Of course, you're not limited to simple tic-tac-toe games. Any single-player (I haven't seen a multiplayer visual novel game yet), turn-based game should be alright (arcade games is possible also, but I think that's pushing it).

You can have card games, board games, or if you're up to it, even chess.

Below is a HI-LO game with a volleyball theme that I'm working on.

I know, I know, that seems over the top, but I did say use your imagination. ;)
